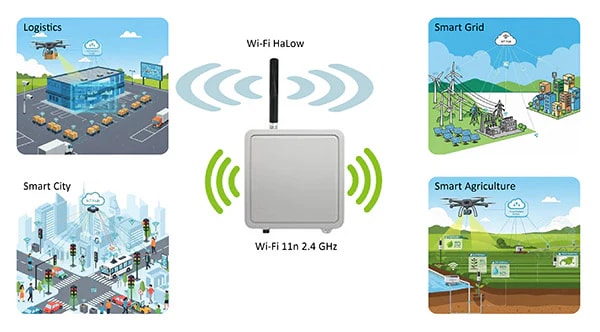

Solo-AHM is the outdoor Wi-Fi HaLow AP with integrated 2.4 GHz Wi-Fi. It’s engineered for vast areas and harsh environments. Wi-Fi HaLow technology delivers kilometer-range
transmission, making it perfect for smart agriculture, large-scale logistics, and demanding IoT applications.

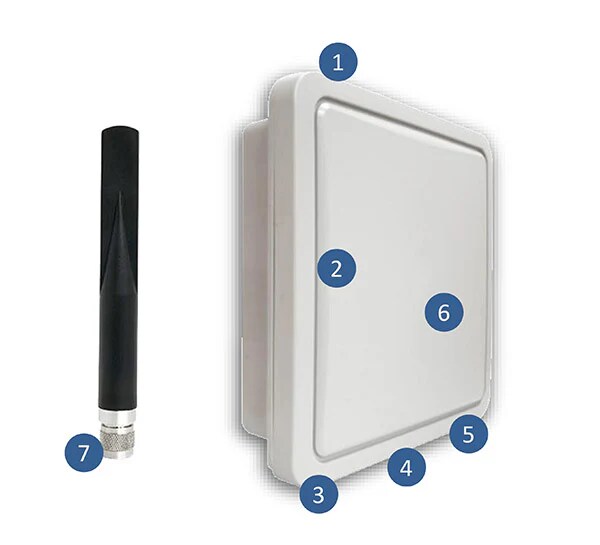

Key Features
- External N female connector for HaLow
- Built-in 2x Wi-Fi 2.4 GHz omni antenna
- Input standard 802.3at/af PoE
- Waterproof vent
- Waterproof LED & reset button
- Waterproof IP67 design
- HaLow Omni Antenna
Specifications
General |
CPU | MediaTek MT7628 |
Flash | 32 MB |
RAM | 128 MB |
Ethernet | 1x PoE Ethernet port |
Button | 1x push-button (reset) |
LED | 1x Power 1x HaLow 1x Reset / System |
Power supply | 802.3at/af PoE (Package includes PSE-1000GU) |
Software | OpenWrt-firmware with source availabl |
Wi-Fi HaLow (IEEE 802.11ah) |
Chipset | Morse Micro MM6108 |
WiFi Standard | IEEE 802.11ah (868/915 MHz) |
Channel bandwidth | 1/2/4/8 MHz |
Date rate | 150 kbps ~ 15 Mbps |
Antenna connector | 1x N female |
Antenna | Package includes 1x 5 dBi Omni Antenna |
Wi-Fi 4 (IEEE 802.11n) |
WiFi standard | IEEE 802.11n (2.4 GHz) |
Channel bandwidth | WiFi 4: 20/40 MHz |
Date rate | 300 Mbps |
Antenna | Built-in 2x 5 dBi omni antenna |
