Key features

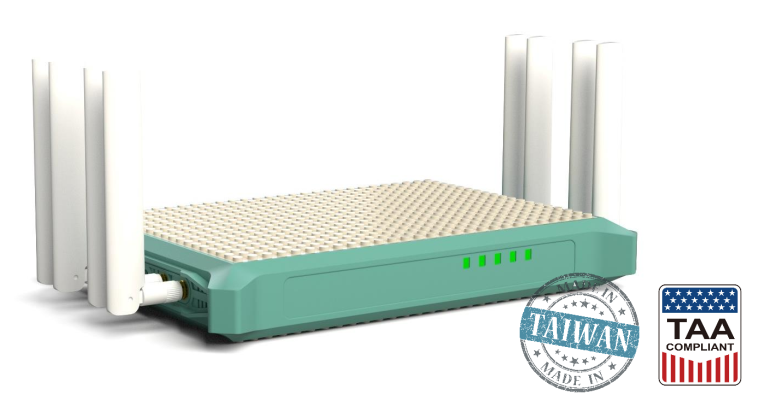

AX5GRM is a Global band 5GNR Wi-Fi 6 router. It supports the fastest internet
speeds and unmatched efficiency. With a built-in Nano SIM slot and detachable
antennas ensuring flexible and customized coverage. Showcasing 2.5 Gbps PoE LAN
and 1 Gbps WAN ports, it’s designed for the ultimate high-speed, reliable internet

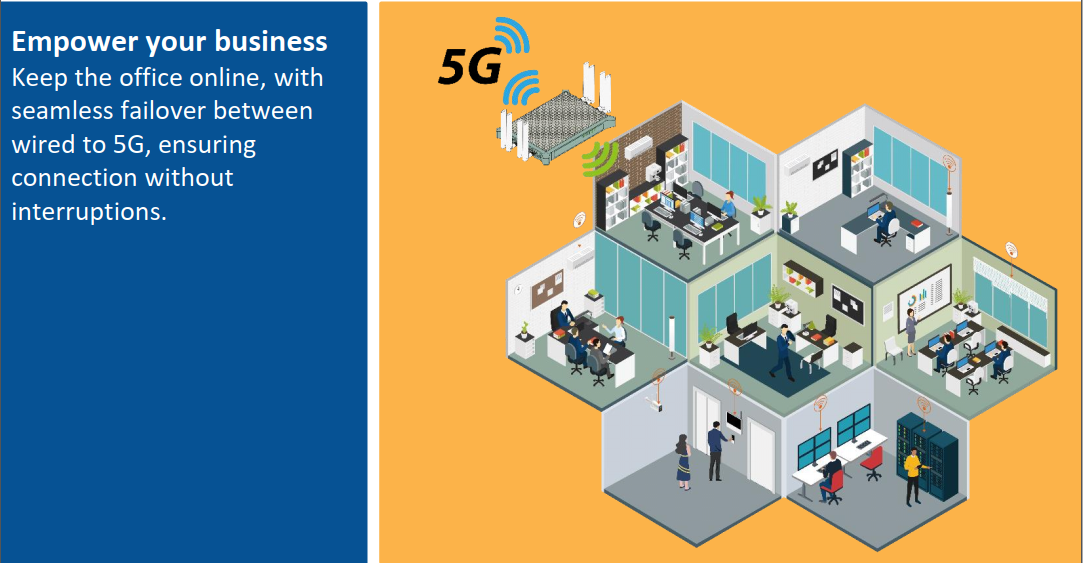

experience. Enhanced with 5G and fixed line failover functionality, it guarantees
uninterrupted connectivity, automatically switching to maintain your online activities
without a hitch. AX5GRM is for those who demand reliability and speed in every
online interaction.
General Hardware
| Chipset | MT6890 SoC: Arm Cortex-A55 2GHz quad-core + 5G NR Wi-Fi 6: MT7915 + MT7975 |
| Flash | 128 Gb eMMC |
| RAM | 16 Gb DDR4 |
| Antenna Connector | 4x SMA for 5GNR 4x RP-SMA for Wi-Fi 6 |
| Antenna Gain | 5G NR: 617 – 960 MHz: 2 dBi 1427 – 2690 MHz: 5 dBi 3300 – 5850 MHz: 4 dBi WiFi: 2.4 GHz: 4 dBi 5 GHz: 4 dBi |
| Interface | 1x Nano SIM slot 1x 2.5 Gbps RJ45 PoE In (Blue) 1x 1 Gbps RJ45 (Black) 1x DC jack (Ø2.1 x Ø5.5) 1x Power on/off switch 1x WPS button 1x Reset button |
| LED | 2x RGBW LED 3x Blue LED |
| Input Voltage | DC: 12V, 2A PoE: IEEE 802.3at PD 25.5 W |
| Power Consumption | Max. 24 W |
| Dimensions | 262 x 190 x 42 mm (10.3 x 7.5 x 1.7 inch) |
| Operating Temperature | -30°C ~ 70°C ( -22°F ~ 158°F ) |
| Operating Humidity | 10% ~ 90% (non-Condensing) |
| ESD | Refers to IEC 61000-4-2 criterion A Air Electrostatic Discharge: ± 8KV Contact Electrostatic Discharge: ± 4KV |
| Surge | Refers to IEC 61000-4-5 criterion A Common mode surge immunity: ± 6KV Differential mode surge immunity: ± 6KV |
5G/4G Standard
| 5G NR | Supports most main features in 3GPP Release 15 3GPP EN-DC option 3/3A/3X 3GPP SA option 2 Support downlink/uplink 256 QAM Support downlink 4x4 MIMO and uplink 2x2 MIMO |
| 5G NR Bands | N1/n2/n3/n5/n7/n8/n20/n28/n30/n38/n40/n41/n66/n71/ n77/n78/n79 |
| LTE-FDD Bands | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25 /B26/B28/B29/B30/B32/B66 |
| LTE-TDD Bands | B34/B38/B39/B40/B41/B42/B46/B48 |
| WCDMA | B1/B2/B4/B5/B6/B11 |
| GNSS | GPS/Glonass/Beidou/Galileo |
| Data Rate | Peak download speed: 4.7 Gbps Peak upload speed: 2.3 Gbps |
Wi-Fi Standard
| Standard | IEEE 802.11 a/b/g/n/ac/ax (W-Fi 6) |
| Frequency | 2401 - 2483 MHz 5150 - 5835 MHz |
| Data Rate | 2.4 GHz: 800 Mbps 5 GHz: 2402 Mbps |
| TX Power | 2.4 GHz: 21 dBm 5GHz: 21 dBm |
| RX Sensitivity | 2.4 GHz: -96 dBm 5 GHz: -80 dBm |
| Security | WEP, WPA, WPA2, WPA3 |
| Advanced Feature | MU-MIMO, Beamforming, OFDMA |
